Using skinny_plot

Credits and date

Code developed by Oscar Miranda-Dominguez.

Documentation started on Dec 12, 2019

Repo location

This function belongs to the package "plotting tools".

https://gitlab.com/ascario/plotting-tools

Intro

This code visualize distributions as thin lines highlighting the following values:

mean value as a circle
interquartile range using thick lines
percentiles 5 and 95 using thin lines

The code has multiple options that allows the user resort the order of each distribution, link the mean values using line, project lines from the mean to the y-axis and so on.

This function requires as input a table with 2 columns: first column with the labels and the second with the numbers to be displayed. Multiple additional arguments can be used.

Example 1

1. Make data Lets make

rng(0)% for consistency
n1=100;
n2=120;
n3=80;
x1=randn([n1 1]);
x2=rand([n2 1]);
x3=rand([n3 1]);

% add potential outlier | Will be highlighted on example 3
x1(end)=3;
x2(end)=3;
x3(end)=3;
x=[x1;x2;x3];


labs{1}='reds';
labs{2}='blues';
labs{3}='greens';
labels=[repmat(labs(1),n1,1); repmat(labs(2),n2,1);repmat(labs(3),n3,1)];

T=table(labels,x);
skinny_plot(T)
%
% YOu can see that it assign default colors and sort the labels
% alphabetically

Example 2. Changing color and resorting

resort_groups=[3 2 1];
% resort_groups=[1 2 3];
my_color=[0 0 1;0 1 0;1 0 0];

skinny_plot(T,my_color,...
    'resort_groups',resort_groups)

Example 3: Testing additional options

dotted_line_flag=0; %options are 1 and 0
show_text_flag=1;%options are 1 and 0
linking_line_flag=1;%options are 1 and 0
ol_flag=1;%options are 1 and 0

skinny_plot(T,my_color,...
    'resort_groups',resort_groups,...
    'dotted_line_flag',dotted_line_flag,...
    'show_text_flag',show_text_flag,...
    'linking_line_flag',linking_line_flag,...
    'ol_flag',ol_flag)

Example 4: defining limits for visualization

yl=[-2.1 3.1];
skinny_plot(T,my_color,...
    'resort_groups',resort_groups,...
    'dotted_line_flag',dotted_line_flag,...
    'show_text_flag',show_text_flag,...
    'linking_line_flag',linking_line_flag,...
    'ol_flag',ol_flag,...
    'yl',yl)

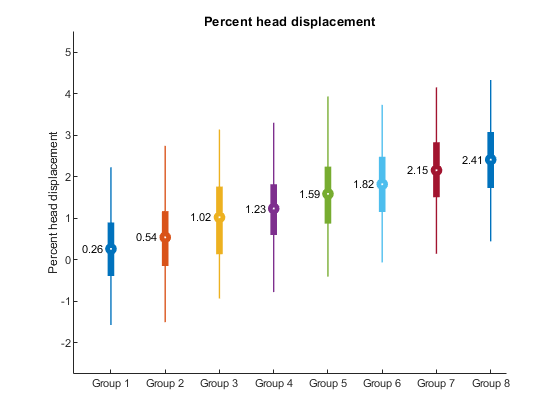

Example 5: showing multiple traces

n_labels=8; % define number of labels
N_max=1000; % define the maxiumum number of elements each label will have
n_elements_per_label=randi(1000,[n_labels 1]);% indicate how many elements each sample will have with a maximum of 1000


x=cell(n_labels,1);
labels=cell(n_labels,1);
offset=.3;%add an offset to each group

% trick to be able to concatenate labes
nzeros=ceil(log10(n_labels));
to_format=['%0' num2str(nzeros) '.f'];

for i=1:n_labels
    x{i}=randn(n_elements_per_label(i),1)+offset*i;
    labels{i}=repmat(['Group ' num2str(i,to_format)],n_elements_per_label(i),1);
end

x=cat(1,x{:});
labels=cat(1,labels{:});

T=table(labels,x);

% The name used in the table that has numbers is used in the figure
T.Properties.VariableNames{2}='Percent_head_displacement';

dotted_line_flag=0;
skinny_plot(T,[],...
    'dotted_line_flag',dotted_line_flag);
% notice that to preserve default colors and add optional arguments, the
% second input argument needs to be empty
